Vilber Fusion SOLO X
CHemiluminescence &
Fluorescence imaging
Vilber

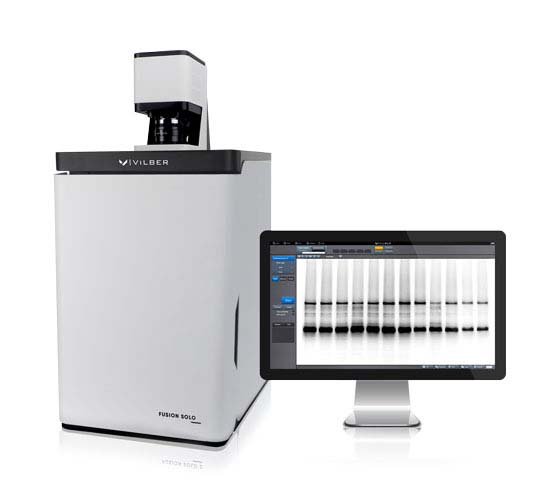

Vilber Fusion SOLO X
Empowering your exploration. Redefining the limits.
Vilber
Vilber
Fusion SOLO X
-
Information
-

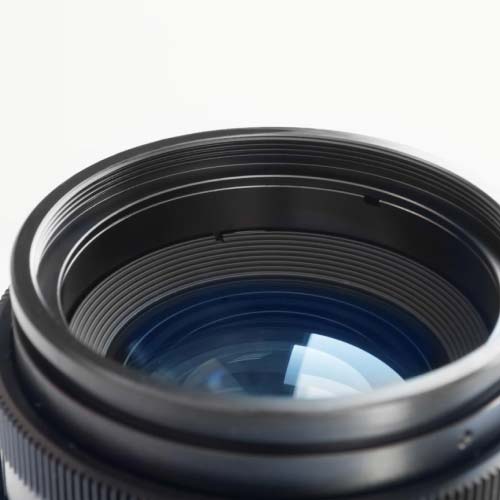

Custom Made Super Sharp LensFusion custom made lens for enhanced sensitivity and sharpness. -
SuperSensitivityTime to get the image is drastically reduced and precious antibody can be saved. -
Auto-ExposureOne click to take the image for an unrivaled ease of use. -
Optional Fluorescence DetectionUpgrade your system as you want from UV fluorescence to IR/NIR channels.
-
Camera & Optic
FUSION Solo 6X with the eVo-6 camera
resolution oriented camera, ideal for publication
resolution oriented camera, ideal for publication
eVo-6 camera :
- Unrivalled custom made lens f/0.70
- Scientific grade CCD camera
- Grade 0, zero defect
- Image resolution: 20 megapixels
- Native resolution: 2838x2224
- -55° C maximum cooling differential from ambient
- -30°C absolute and regulated cooling via three stages Peltier thermoelectric cooler
- High Sensitivity reading (HSR) technology
- USB-3 connection
Hardware
Steel and stainless steel darkroom for long lasting robustness. Wide access door.
Smart Darkroom technology :
- 5 sample tray positions
- Software control of the lighting
- Automatic visible lighting adjustment
Software
Free software for image acquisition with full GLP compliance.
Smart Darkroom technology :
- Molecular weight calculation, band quantification, colony counting, distance calculation, text annotation and image enhancement included
- CFR21 Part 11 ready
